Evolution

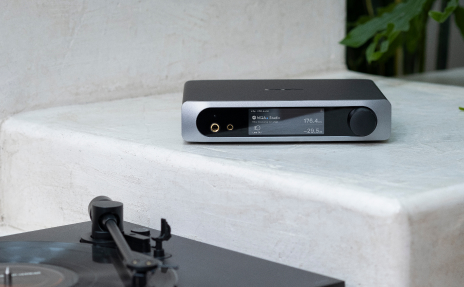

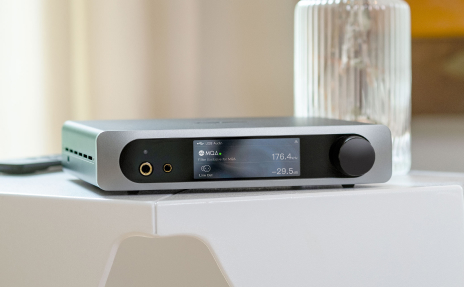

This is the 4th generation product under the mini-i series name from 「Matrix Audio」 continuing the classic design and superb build quality. The new mini-i Pro 3 use a two-color aluminum shell in silent black and space gray with a 3.3-inch LCD screen and a brand new user interface. The mini-i Pro 3 provide an improved user experience and stunning good looks.
Omnipotent and outstanding
mini-i Pro 3 is a streaming audio DAC with various digital audio input ports including toslink, coaxial, IIS-LVDS, USB audio inputs and high-resolution Bluetooth connection. Whether it is a digital audio signal from a phone, TV, set-top box, game console, HTPC, perfectly restore the purity and shock of the original music. With a built-in headphone amplifier and MQA full decoder. It works as a Roon Ready endpoint or playback through AirPlay conveniently. mini-i Pro 3 is a combination of elegant design and attractive sound characteristics. It's top-notch in terms of controlling, tuning, and resolution.
Embrace Streaming Media

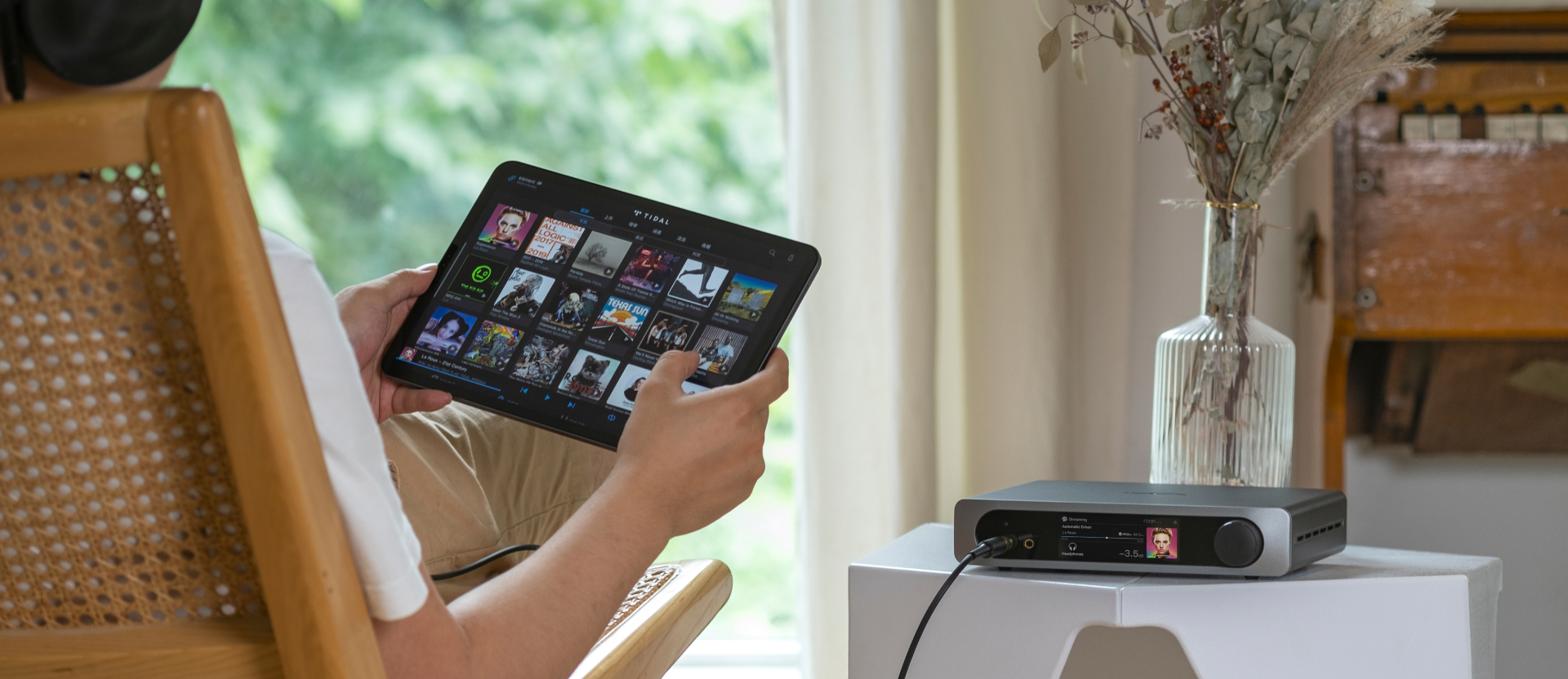

「Matrix Audio」 introduces streaming functionality into the mini-i series audio DACs, so you can easily enjoy a huge selection of music sources. With Roon Ready, you can playback bit-perfect music streams through the mini-i Pro 3 over a LAN, or push music to mini-i Pro 3 from an iPhone, iPad, or any MAC computer on the network using AirPlay.

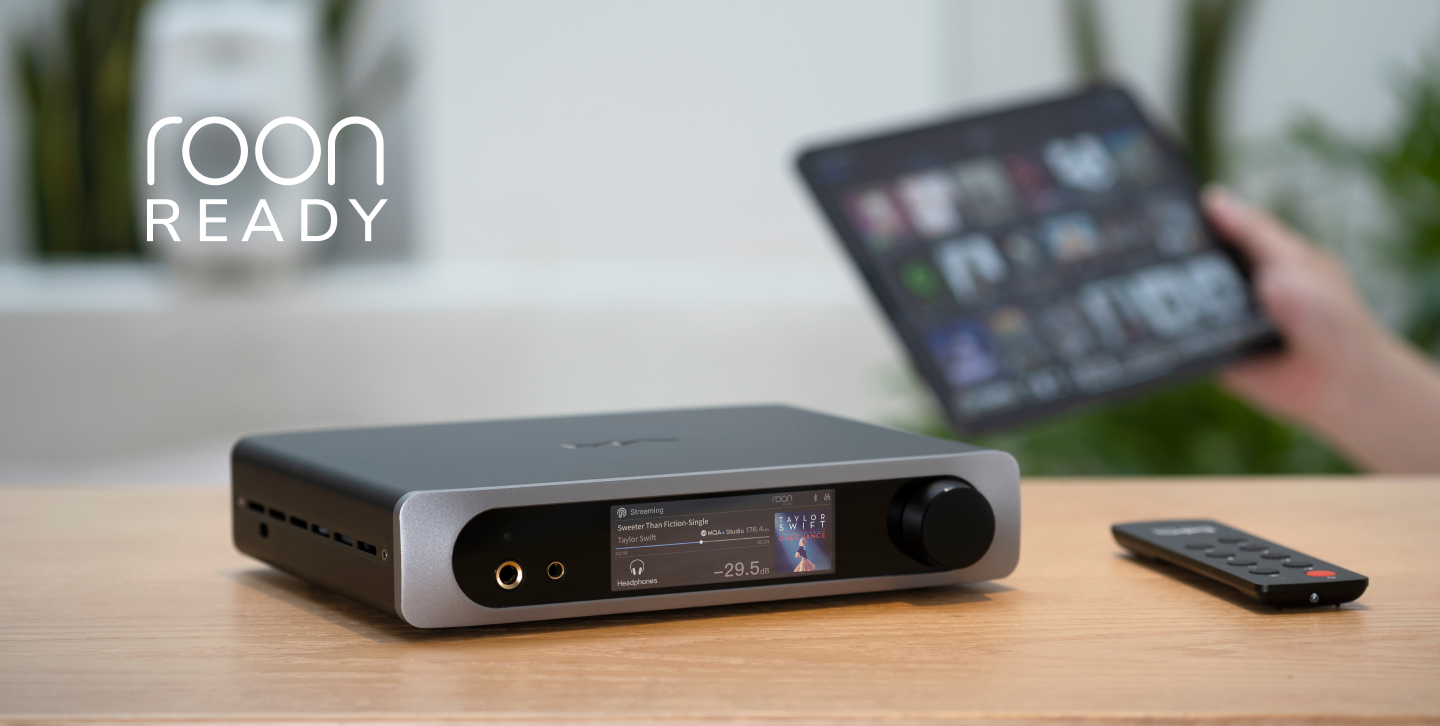

Roon Ready
Roon finds the links between your music collection and the millions of tracks available on Internet, so you can start with the music you know, then explore and discover new music. The mini-i Pro 3 act as an endpoint in Roon streaming media system, they transparently discover and connect to Roon without any configuration, and bit-perfect audio is delivered from Roon to mini-i Pro 3.

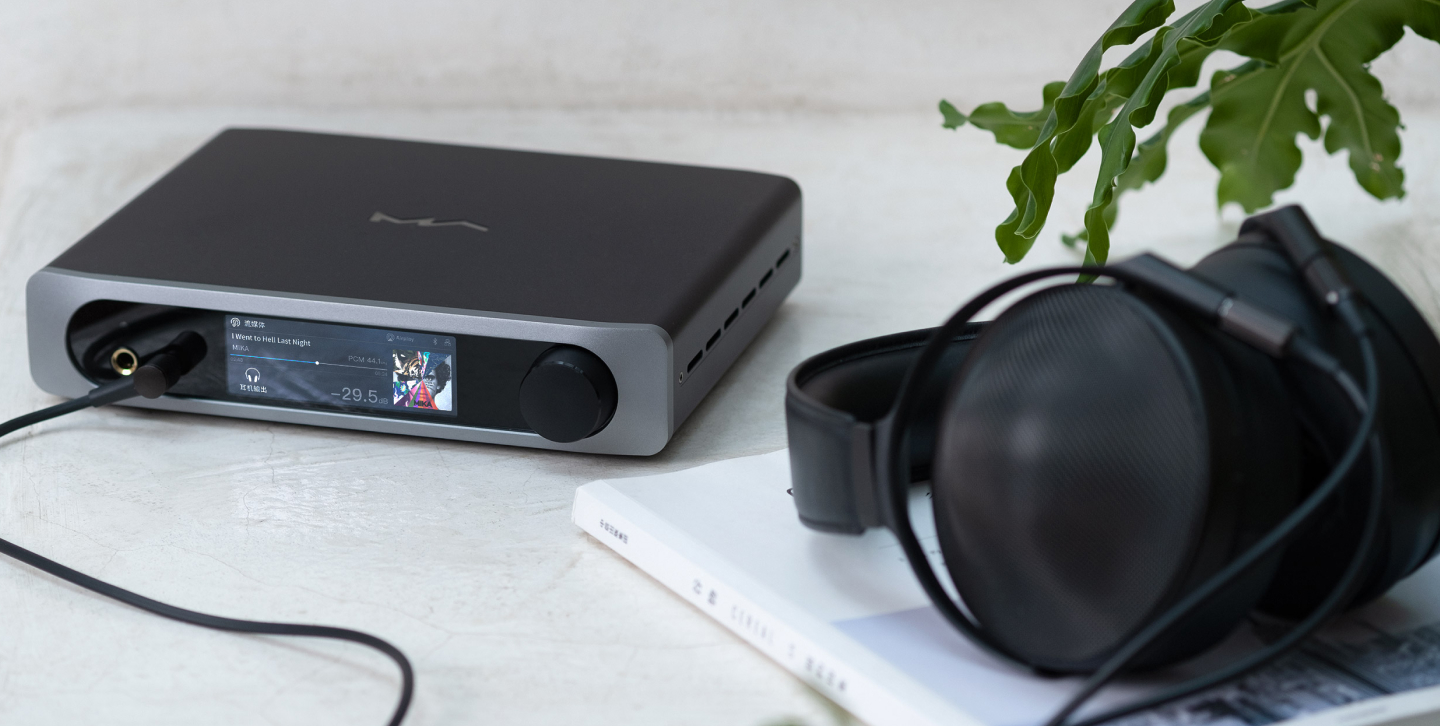

Balanced Headphone AMP
The mini-i Pro 3 feature a fully balanced headphone amplifier. This allows the left and right channel signals to pass through a nearly perfect symmetrical amplifier circuit, providing ample headphone output power with low distortion and low noise. The output power of single-ended headphone connection is increased by 50%, and the balanced headphone output is increased by 3 times compared to the previous generation. The addition of a 4.4mm balanced headphone jack makes it easier to connect various popular balanced headphones.
Bluetooth & Wi-Fi
When the mini-i Pro 3 connected to an LDAC enabled Android device over Bluetooth, up to 24Bit/96kHz high-res audio can be transmitted. The aptX HD technology allows compatible devices to transmit 24Bit/48kHz high-res audio wirelessly over bluetooth. The dual-band Wi-Fi and Ethernet connections enable the mini-i Pro 3 to have high-speed and stable network access. The enclosed antenna system covers the different bands available on the mini-i 3 and mini-i Pro 3 for Bluetooth and Wi-Fi.
Intuitive Graphical UI

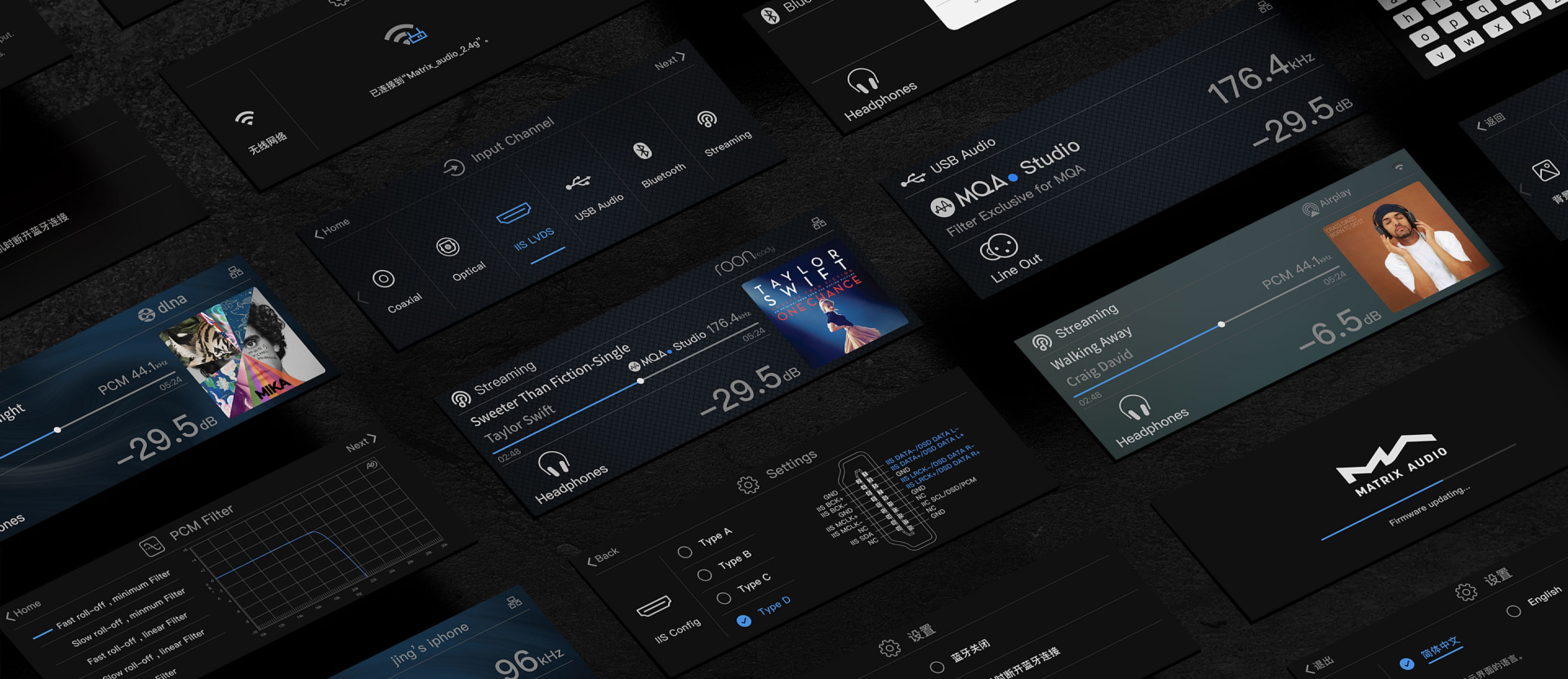

We have created an elegant UI for the mini-i Pro 3, which are the first models to include a 24-bit color LCD display from 「Matrix Audio」. You can view the input channels, streaming methods, device configurations, and additional information on the display clearly and intuitively. Even filter curves and the IIS interface definitions are displayed graphically.
MQA full decoder
MQA (Master Quality Authenticated) is an award-winning British technology that delivers the sound of the original master recording. The master MQA file is fully authenticated and is small enough to easily be streamed. The mini-i Pro 3 is a MQA full decoder, which enables you to play back MQA audio files and streams without any software decoding, delivering the sound of the original master recording.

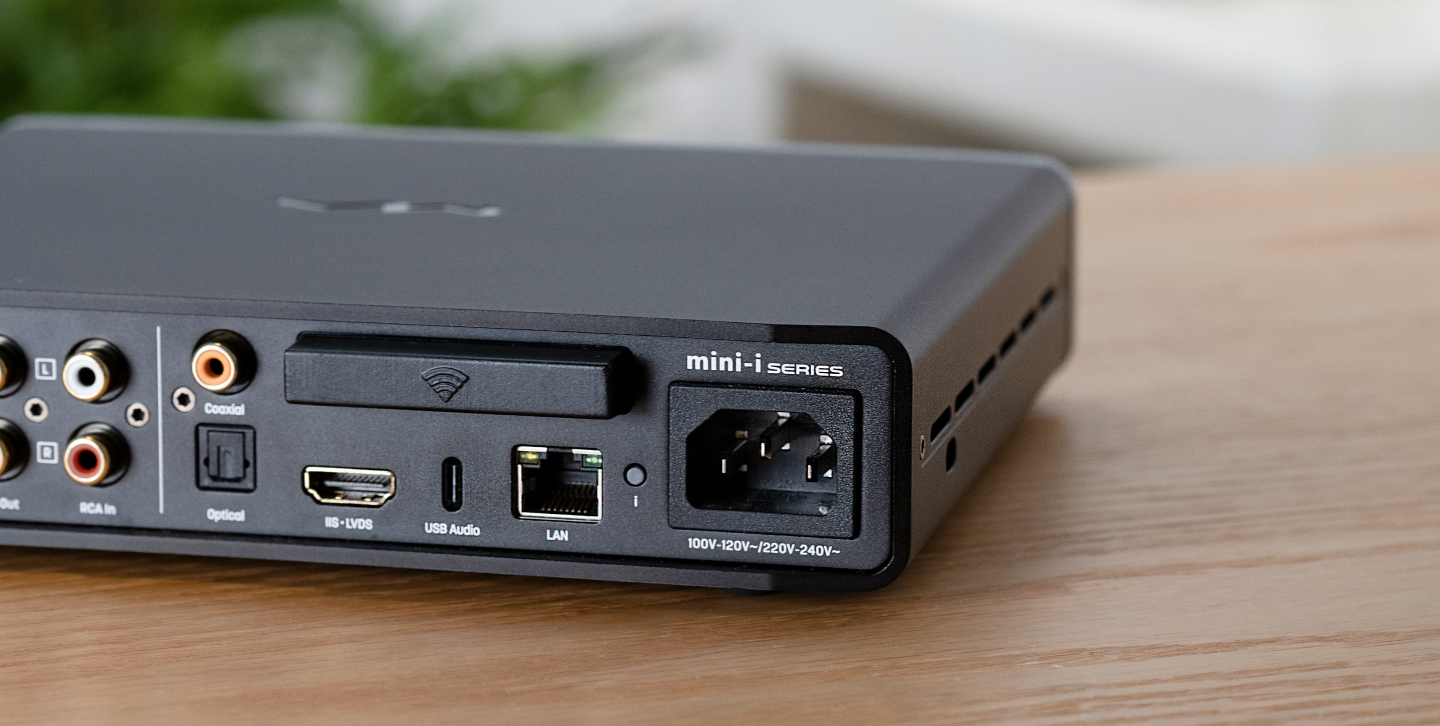

Connect to everything

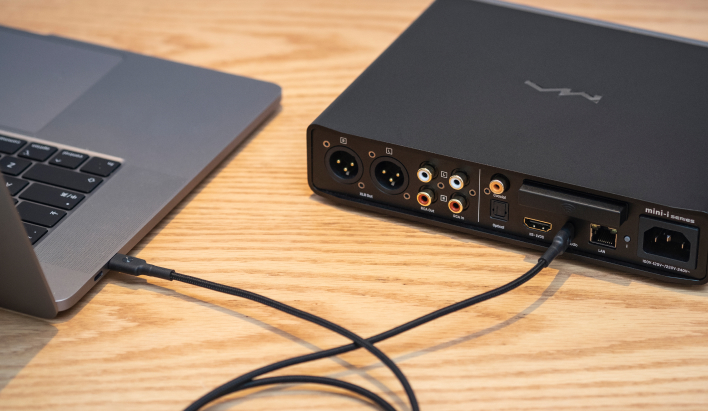

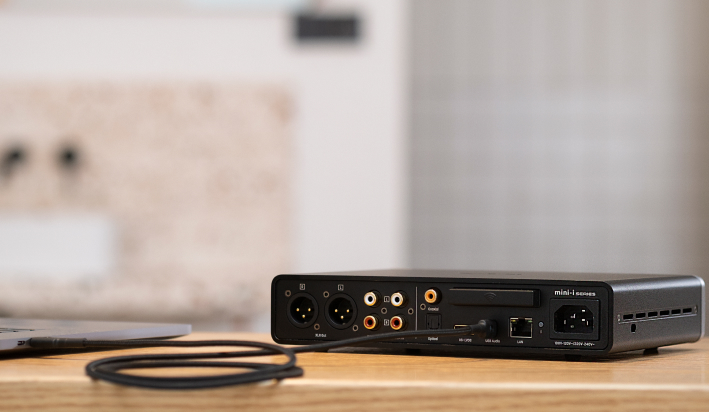

Like the previous generation, mini-i Pro 3 also have various digital audio input ports. They are first models with IIS-LVDS input port in entry product line, it means mini-i Pro 3 can get a performance improvement through external audio interface. The USB Type-C connector improves the connection reliability and transmission efficiency of digital audio signal.

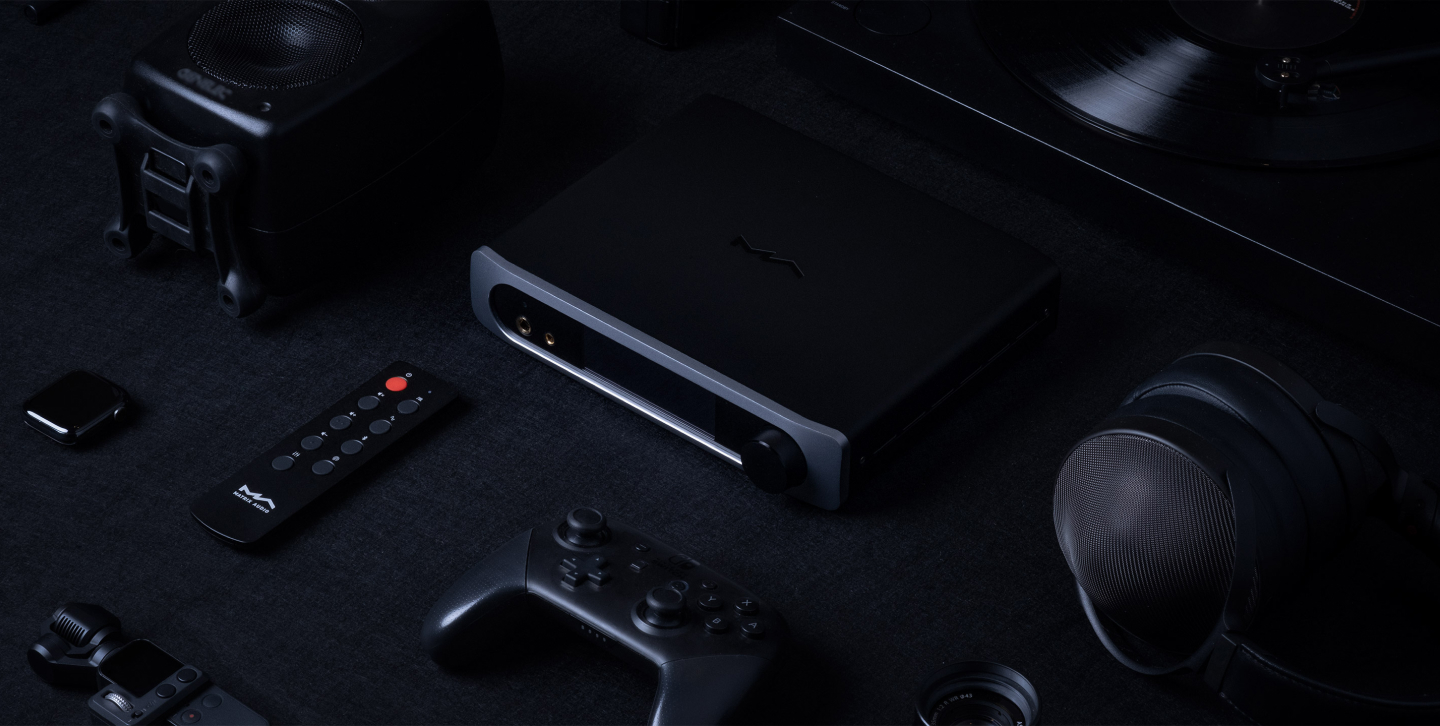

Digital and Analog Sources All-in-One
The mini-i Pro 3 have multiple input and output ports witch act as a transportation hub in your audio system. Whether it is a digital audio signal from a TV, set-top box, game console, HTPC, or analog audio equipment such as a vinyl turntable, it can be connected to a digital audio system with the help of mini-i Pro 3.
Continued Development
To improve the functionality and performance of the mini-i Pro 3, we will continue to release new firmware updates adding exciting new features and further refinements to the user experience. Only a few simple steps are needed to keep your product up to date.

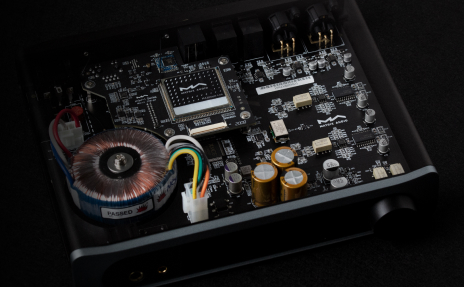

The Best Components
We re-designed every details of mini-i Pro 3, the exterior and the internal structure have been adjusted and verified repeatedly, even a small part on the PCB has been carefully considered. The power supply of mini-i Pro 3 has been greatly improved, both the maxmium power and the noise level are totally beyond its previous generation.
Specifications
Hardware Platform
| CPU | NXP i.MX 6UL Cortex-A7 @900MHz |
| D/A Chip | ES9038Q2M |
| Clock Source | Crystek CCHD-950 |
Digital Input
| COAXIAL & OPTICAL | PCM 16-24Bit /44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz DSD 2.8MHz (DoP)
|
| IIS-LVDS | PCM 16-32Bit /44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 352.8kHz, 384kHz, 705.6kHz, 768kHz DSD 2.8MHz, 5.6MHz, 11.2MHz (DoP) DSD 2.8MHz, 5.6MHz, 11.2MHz, 22.4MHz (Native)
|
| USB Audio | Type C double-sided support PCM 16-24Bit /44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 352.8kHz, 384kHz, 705.6kHz, 768kHz MQA 16-24Bit /44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 352.8kHz, 384kHz MQA or MQA Studio stream DSD 2.8MHz, 5.6MHz, 11.2MHz (DoP) DSD 2.8MHz, 5.6MHz, 11.2MHz, 22.4MHz (Native) |
Analog Input
| RCA | SNR: 102dB A-weighting THD+N:<0.0025%@1k, <0.0030%@20Hz-20kHz Frequency Response: 20Hz-20kHz ±0.2 -3dB@46kHz Channel Crosstalk: >-97dB Input Level: 2.0VRMS Maximum |
Line Output
| XLR | SNR: 123dB A-weighting THD+N:<0.00027%@1k, <0.00031%@20Hz-20kHz Frequency Response: 20Hz-20kHz ±0.1 -3dB@90kHz Channel Crosstalk: >-138dB Output Level: 4.1VRMS@0dB
|
| RCA | SNR: 121dB A-weighting THD+N:<0.00045%@1k, <0.00051%@20Hz-20kHz Frequency Response: 20Hz-20kHz ±0.1 -3dB@90kHz Channel Crosstalk: >-128dB Output Level: 2.0VRMS@0dB |
Headphone Output
| TRS 6.35mm SE | SNR: 116dB A-weighting THD+N:<0.0006%@2VRMS Frequency Response: 20Hz-20kHz ±0.1 -3dB@64kHz Output Impedance:<11Ω Output Power: 1270mW@33Ω, 257mW@300Ω, 133mW@600Ω, 1%THD Gain: +18dB
|
| 4.4mm Balanced | SNR: 117dB A-weighting THD+N:<0.0006%@4VRMS Frequency Response: 20Hz-20kHz ±0.1 -3dB@64kHz Output Impedance:<22Ω Output Power: 1900mW@33Ω, 950mW@300Ω, 510mW@600Ω, 1%THD Gain: +24dB |
Hi-Res Bluetooth
| Sampling Rate | PCM 16Bit/44.1kHz, 48kHz, 96kHz, aptX/aptx HD/AAC/SBC/LDAC |
| Bluetooth Version | Bluetooth V5.0 |
| Operation Distance | 10-15m |
Network
| LAN | 10BASE-T/100BASE-TX |
| WLAN | 2.4GHz/5GHz |
MA player Lite
| Roon Ready | PCM 16-24Bit 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 352.8kHz, 384kHz MQA 16-24Bit /44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 352.8kHz, 384kHz MQA or MQA Studio stream DSD 2.8MHz, 5.6MHz
|
| AirPlay 2 | The audio specs depend on the service provider |
Weight and size
| Weight | 1.7 kg (3.75 pounds) |
| Size | Width: 223 mm (8.78 inches) Depth: 205 mm (8.07 inches) Height: 48 mm (1.89 inches) |
Power Specs
| Power Voltage | 230V position is fit for AC 220V-240V 50/60Hz 115V position is fit for AC 100V-120V 50/60Hz |
| Standby Power Consumption | < 2W |
| Maximum Power Consumption | < 20W |
Accessory
RM3 remote control Power cable Quick start guide Warranty card | x1 x1 x1 x1 |
For improvement purpose, specifications subject to changes without prior notice.
